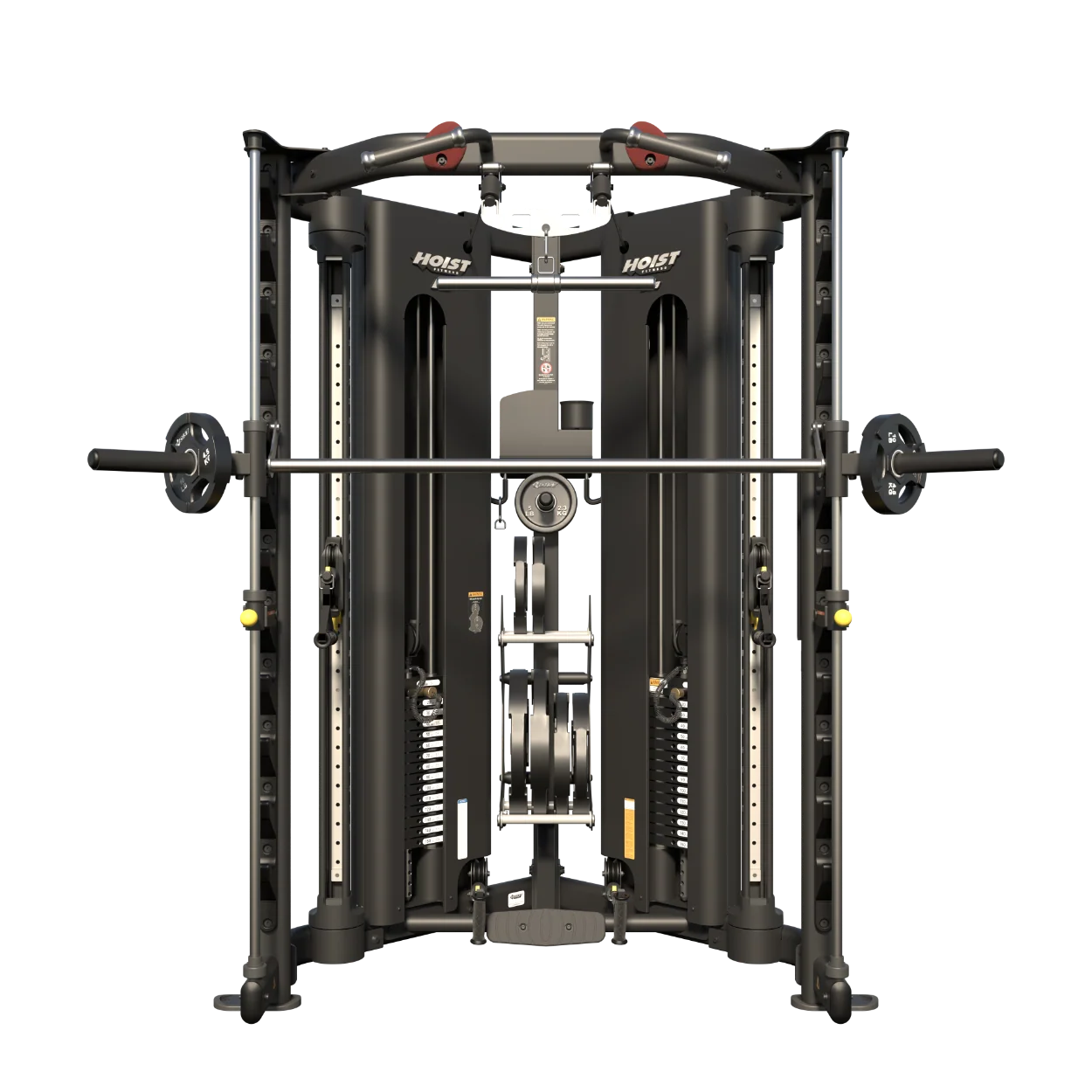

HOIST H-8 Functional Trainer

NOW SHIPPING

Big Performance. Compact Design. Transform your home gym or light commercial space with HOIST® Fitness H8 Functional Trainer—a powerful all-in-one solution engineered for efficiency, versatility, and style. Designed to fit seamlessly into a corner, the H8 saves space without sacrificing functionality. Built with HOIST®’s signature EZG cable columns, the H8 combines the smooth performance you expect with a fully integrated Smith machine, dedicated low row, lat pulldown stations, and built-in weight storage—all in one sleek, corner-friendly footprint. Whether you’re training for strength, performance, or total-body fitness, the H8 delivers the tools you need, right where you need them.

FEATURES

180° rotating columns

Patented single-handed Adjustment System

Quick-Release Adaptors for rapid accessory changes

28 pulley adjustment points per column (independent or dual-side use)

12 rack-out positions

Starting resistance: 38 lbs. (17.2 kg)

Max capacity: 450 lbs. (204 kg)

Comes standard with 300 lbs. of total weight (Two - 150 lb. Silent Steel® weight stacks that are upgradable to 200 lbs. each or 400 lbs. total): Each solid steel individual plate receives pressed-in industrial plastic bushings and then is machined to exacting specifications to ensure glass smooth operation plus eliminating any metal to metal contact or sound

Angled weight horns for compact loading.

2 × Lat Pulldown pulleys

2 × Low Row pulleys

Split Weight Cabling: Delivers 50% resistance for extended cable travel (Cable travel distance 85.00" (216 cm)

Standard chin-up bars

Textured rock-climbing grips

Central weight & accessory storage

Integrated phone/tablet rack

Water bottle holder

Multiple hooks for organized attachment storage

specs

WEIGHT SYSTEM

Standard: 2 × 150 lbs. Silent Steel® stacks

Optional Upgrade: 2 × 200 lbs. stacks (400 lbs. total)

Weight Plate Storage Capacity: 300 lbs. (136 kg)

ACCESSORIES INCLUDED

2-to-1 Cable Adapter

Two Strap Handles w/ Square D-Ring

Fleece Knee Strap (1 D-Ring & 2 Square Rings)

Chin Assist Strap (4” wide)

Two Carabiner Adapters

Aluminum Straight Bar Assembly

Aluminum Curl Bar Assembly

Two Strap Handles w/ 3 Square Rings

Aluminum Lat Bar

Specs

Length: 56.00" (142cm)

Width: 80.25" (204cm)

Height: 83.75" (213cm)

Machine Weight: 903 lbs. (410 kg)
